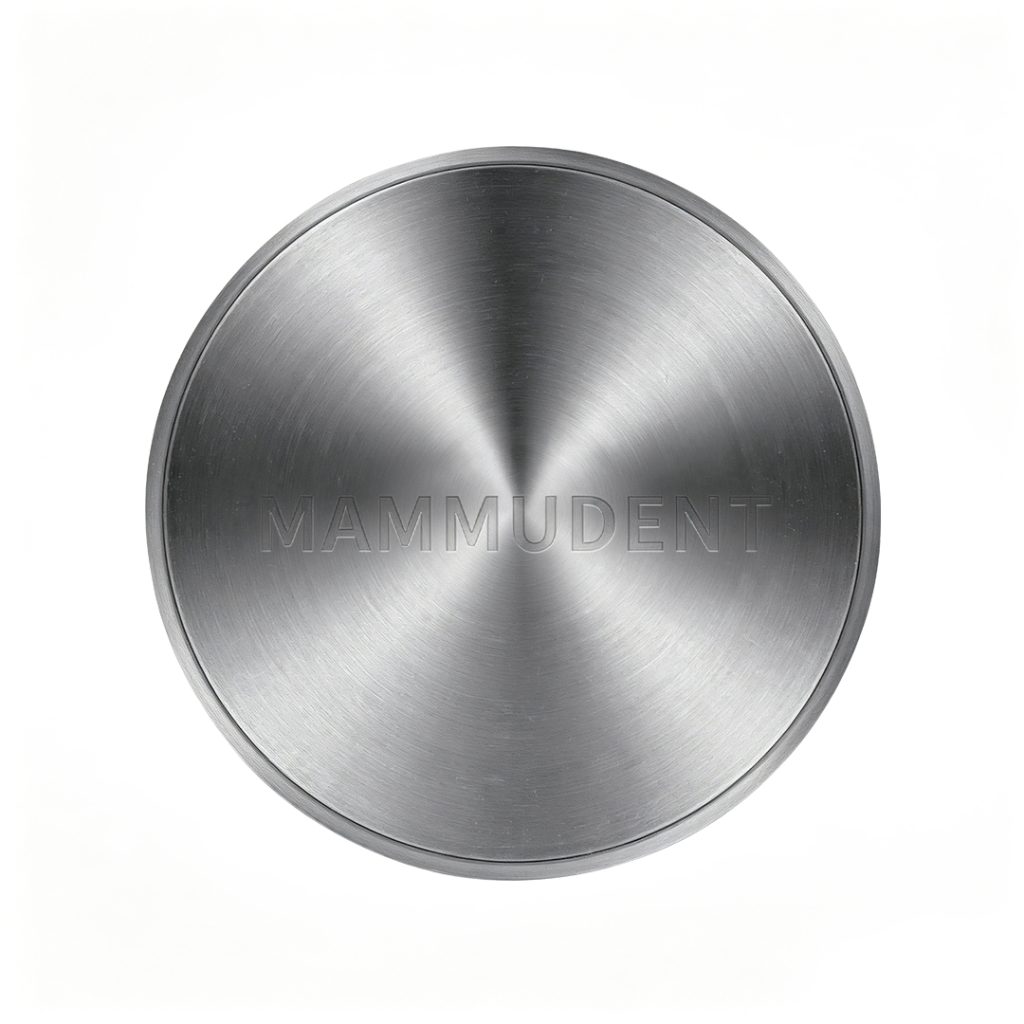

Titanium Disc for Dental CAD CAM Milling
Technical Specifications of Titanium Discs
| Parameter |
Value |
| Material |
Titanium (Grade 5 / Grade 2 optional) |
| Diameter |

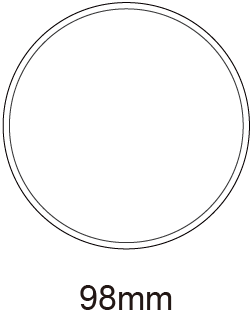

98mm |
| Thickness |
10mm / 12mm / 14mm / 16mm / 18mm / 20mm / 25mm |
| Application |
Implant bars, abutments, frameworks |
| Compatible System |
Open CAD CAM systems |
What is a Titanium Disc?
Titanium disc dental materials are widely used in CAD CAM systems for manufacturing implant-supported restorations. Known for their exceptional strength and biocompatibility, titanium discs are ideal for precise and durable dental applications.
Key Features of Titanium Discs
Mammudent titanium discs are manufactured with high precision to meet the demands of modern dental laboratories. These discs ensure stable performance and accurate milling results.
- High strength and durability
- Excellent biocompatibility
- Precision milling performance
- Corrosion resistance
- Suitable for implant restorations
Applications of Dental Titanium Discs
Titanium discs are widely used in implant dentistry and prosthetic fabrication, ensuring long-lasting and reliable restorations.
- Implant bars
- Abutments
- Screw-retained restorations
- Custom prosthetic frameworks
Why Choose Mammudent Titanium Discs
As a professional titanium disc supplier, Mammudent provides reliable and high-quality dental materials for global markets. Our titanium discs are compatible with most open CAD CAM systems and ensure consistent machining resul
PROPERTY
| Type |
|
| Vickers Hardness |
HV 10 |
| Coefficient of Thermal Expansion |
25-500°C |
| Density |
|
| 0.2% Yield Strength |
Rp 0.2 |
| Tensile Strength |
Rm |
| Elongation at Break |
A5 |
| 5 |
| 353 |
| 9.8×10-6K-1 |
| 4.43g/cm3 |
| 828MPa(N/mm2) |
| 895MPa(N/mm2) |
| 10% |
COMPOSITION

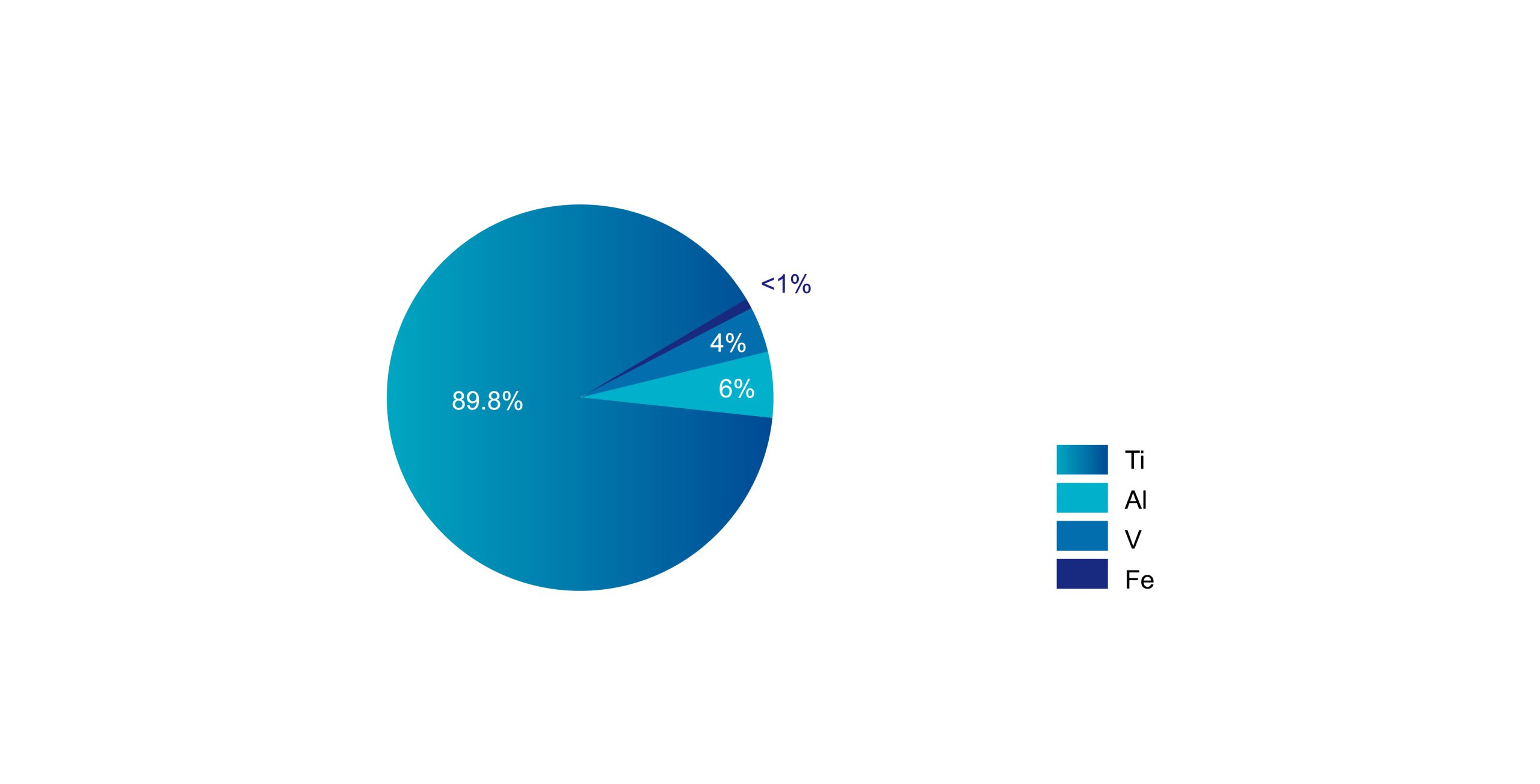

Chemical Composition of Titanium Disc Grade 5: Ti 89.8%, Al 6%, V 4%, Fe <1%.
Advantages of Mammudent Titanium Discs:
1. High Strength: Excellent mechanical strength to ensure structural integrity of restorations.
2. High Biocompatibility: Certified biocompatibility complying with oral safety standards.
3. Low Tool Wear Rate: Extending the service life of milling equipment.
